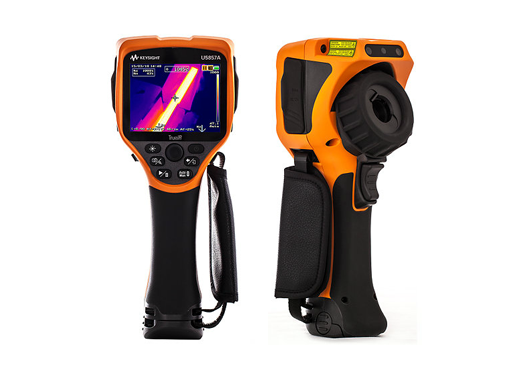

TrueIR Thermal Imager

  • Identify abnormalities faster with 4x more in-camera fine resolution
  • Monitor temperature changes through image logging and temperature trending capabilities
  • Ability to focus on objects as close as 10 cm away
  • Compact, lightweight, ergonomic
  • High temperature range (up to 1200 °C)
  • Easy-to-use customizable color palette

| 제품 사양

  U5855A U5856A U5857A
Temperature measurement range
   Range 1:
   Range 2:
   Range 3:
–20 ~ 350 °C
–20 to 120 °C
0 to 350 °C
NA
–20 ~ 650 °C
–20 to 120 °C
23 to 650 °C
NA
–20 ~ 1200 °C
–20 to 120 °C
0 to 350 °C
250 to 1200 °C
Thermal sensitivity
   Range 1:
   Range 2:
   Range 3:

0.07 °C (at 30 °C)
0.1 °C (at 30 °C)
NA

0.07 °C (at 30 °C)
0.5 °C (at 30 °C)
NA

0.07 °C (at 30 °C)
0.1 °C (at 30 °C)
0.5 °C (at 250 °C)
Accuracy ± 2 °C or ± 2% (whichever is greater)
At 0 ~ 40 °C ambient temperature
Detector type Uncooled focal plane array (α-Si)
Detector resolution 160 × 120
Fine resolution (in-camera) 320 × 240 (IR pixels)
Spectral range 8 to 14 μm
Frame rate 9 Hz
Field of view (FOV) 28 ° (H) × 21° (V)
Spatial resolution (IFOV) 3.1 mrad; 2.1 mrad (with fine resolution)
Focal distance 10 cm to infinity
Focus mechanism Manual focus

| 옵션 & 액세서리

Description Model number
U5855A TrueIR thermal imager with 2-bay charger and additional battery U5855A-100
U5856A TrueIR thermal imager with 2-bay charger and additional battery U5856A-100
U5857A TrueIR thermal imager with 2-bay charger and additional battery U5857A-100
Power adapter (with power cord) U5751A
Rechargeable Li-Ion battery U5752A
External battery charger (2-bay) U5753A
Video RCA to RCA interface cable, 2 m U5761A
USB standard-A to mini type-B interface cable, 1 m U5762A
Rugged carrying case, hard U5771A
Hand strap, adjustable for right-handed and left-handed use U5772A

| 자료실

제    목 파일 다운로드
IO Libraries Suite Downloads EXE
[제품사양서] U5855A 열화상카메라 PDF
