중소 규모 PCA에서 정확히 필요한 곳을 자동으로 프로빙합니다.

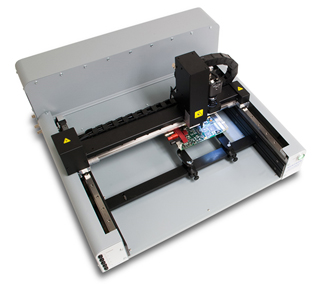

Huntron Access Prober는 수동으로 테스트해야하는 인쇄 회로 어셈블리 (PCA)의 테스트를 자동화하는 데 사용됩니다. 플라잉 프로브 테스터를 분석 절차에 추가하면 테스트 시간이 크게 단축되므로 생산성이 크게 향상됩니다. Access Prober는 중소형 PCA의 테스트 포인트에 정확하게 액세스하도록 설계되었습니다. 마이크로 스텝핑 및 선형 인코딩으로 얻을 수있는 탁월한 정확성은 가장 작은 표면 실장 부품의 신뢰성있는 프로빙을 보장합니다. Huntron Access Probers는 표준 내장형 테스트 프로브 또는 맞춤형 테스트 프로브를 사용하여 새 장비 또는 기존 장비에 비행 프로브 테스터 기술을 추가합니다. 고해상도 컬러 카메라는 올바른 프로브 배치를 보장하고 테스트중인 PCA를 명확하게 보여줍니다.
Access Prober Specification | Access |
---|---|
Number of Test Heads | 1 |
Maximum Board Under Test Size | 19.4" x 14" (49.3cm x 35.6cm) |
Maximum Probing Area | 15.3" x 12.9 " (38.9cm x 33.8cm) |
Maximum Board Component Height | 2.375" (6cm) |
Dimensions | 26.5" W x 13" H x 24.5" D (67.31cm W x 33.02cm H x 62.3cm D) |
Accuracy and Resolution | 0.0007874" (±20 microns) at 0.0003937" (10 microns) minimum |
Included Accessory | Part Number |
---|---|
Huntron Workstation CD | Part number 06-5228 |
Manual on CD | Part number 06-5217 |
4 Common leads | Part number 98-0043 |
Common Lead with Ferrite Bead (EMI reduction) | Part number 98-0227 |
Power cord | Part number 98-0015 |
USB Cable | Part number 98-0418 |
Tool Kit | Part number 98-0452 |
2 Crossbar Assemblies - 19.25" | Part number 98-0393 |
Slide Bar Extension | Part number 98-0132 |
4 Rotating Slide Bar Assemblies | Part number 98-0685 |
4 1" Rotating PCA Support Arms | Part number 01-3586 |
4 2" Rotating PCA Support Arms | Part number 01-3598 |
4 0.5" PCA Support Pins used with Rotating PCA Support Arms | Part number 01-3669 |
4 Wing Nuts used with Rotating PCA Support Arms | Part number 07-3317 |
2 Board Spacers (3 slot) | Part number 98-0111 |
3/32 Allen Wrench for Stop Blocks | Part number 98-0228 |
2 BNC Cables | Part number 98-0479 |
Probe Kit (includes 50mil Probe Holder) | Part number 98-0126 |
Video Microscope | Part number 98-0693 |
