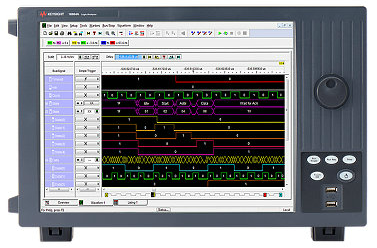

16860 시리즈 휴대용 로직 분석기

  • High-speed state and timing with deep memory – Capture the most system activity (up to 128 Mb) at the highest resolution to identify the root cause of a problem and symptom widely separated in time
  • Signal integrity – Quickly identify problem signals with simultaneous eye diagrams on all channels
  • Probing and application support – Customize a system for your specific needs with a comprehensive set of probing options and application-specific software
  • Upgradable – Purchase the capability you need now, then upgrade as your needs evolve

| 제품 사양

제품 채널 타이밍 줌 최대 타이밍 속도
(Half / Full 채널)
Max. State Speed
Max. Data Rate
최대 메모리
16864A 136 12.5 GHz  2.5 GHz / 5 GHz  700 MHz, 1400 Mb/s
128 M
16863A 102 12.5 GHz  2.5 GHz / 5 GHz  700 MHz, 1400 Mb/s
128 M
16862A 68 12.5 GHz  5 GHz conventional / 12.5 GHz timing zoom   700 MHz, 1400 Mb/s
128 M
16861A 34  12.5 GHz  5 GHz conventional / 12.5 GHz timing zoom   700 MHz, 1400 Mb/s
128 M

| 자료실

제    목 파일 다운로드
IO Libraries Suite Downloads EXE
[제품사양서] 16850 시리즈 휴대용 로직 분석기 PDF
