(단종) U4611A/B USB 2.0/3.0 프로토콜 분석기

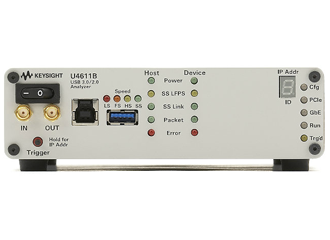

  • Validate and debug your USB design with the industry's fastest and deepest USB 3.0/2.0 protocol analyzer and the industry's only USB 3.0 jammer. Keysight’s new USB 3.0/2.0 analyzers combine the industry’s deepest trace buffers – up to 18 GB – with its most powerful triggering engine. The new USB 3.0 jammer makes it possible for engineers to inject specific errors into their system under test with precision. These combined capabilities allow engineers to push their USB designs to their limits – and beyond – enabling them to quickly validate and troubleshoot their designs with confidence.

| 주요 특징 및 사양

The most powerful USB protocol analysis system available

- Simultaneous capture and analysis of USB 3.0 (5 Gbps) and USB 2.0 (480, 12 and 1.5 Mbps)
- 4 concurrent trigger sequencers with 26 states each, multi-way branching, 32 counters and 32 timers
- Traces indexed in real-time and stored in deep yet responsive buffers, configurable as 2.25, 4.5 or 9 GB (Model : U4611A)
- Traces indexed in real-time and stored in deep yet responsive 18 GB buffer. (Model : U4611B)
- Even the deepest traces saved quickly via GbE (70 MB/s sustained) or PCIe (up to 500 MB/s)

Lightning-quick, intuitive GUI for all analysis needs, from the everyday to that rare, complex event

- Immediate display of trace – no need to wait for the host to upload and post-process the entire trace!
- View your traces in transaction view, protocol view or spreadsheet view
- Instantly see all relevant information, from packet detail view to histogram overview of the entire trace
- Time-saving drag and drop of fields between trace, trigger, filter and search

| Find USB Problems Faster With MegaZoom

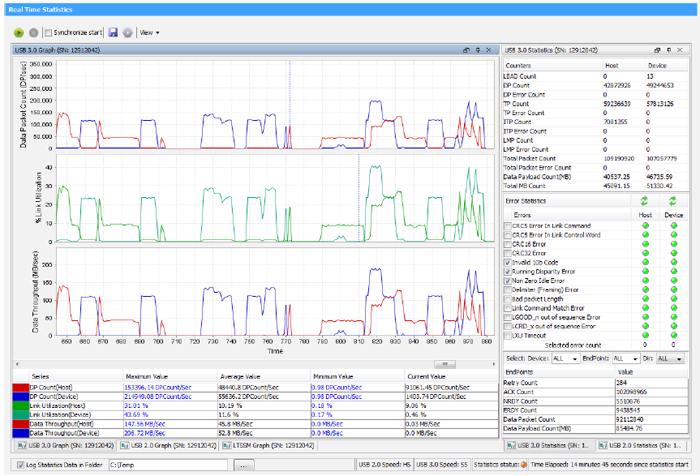

Real-time performance graphically shows the throughput as well all major packet counts and endpoint performance.

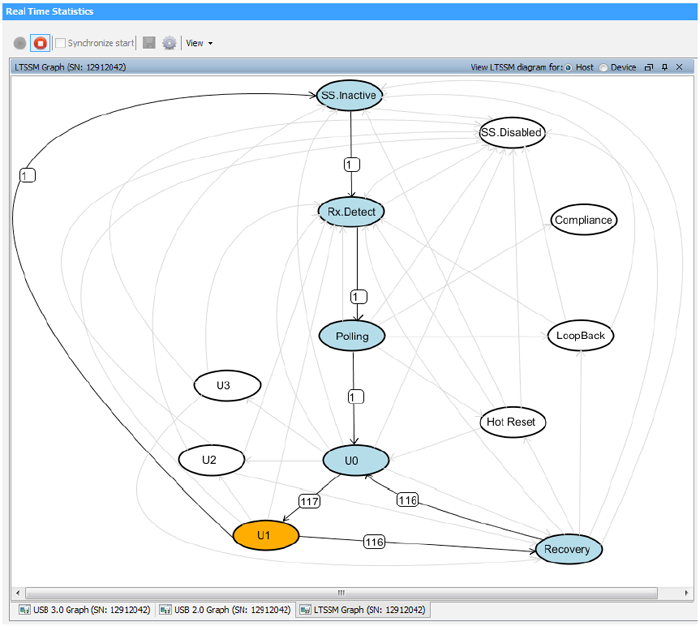

Real-time LTSSM status shows all of the transitions as well as the current state of the link.

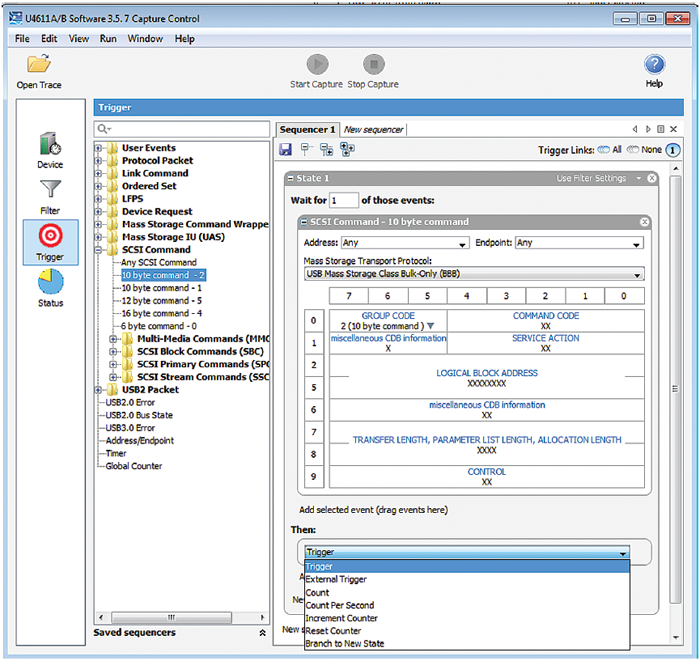

Trigger configuration is through an intuitive menu drive system that supports complex measurements.

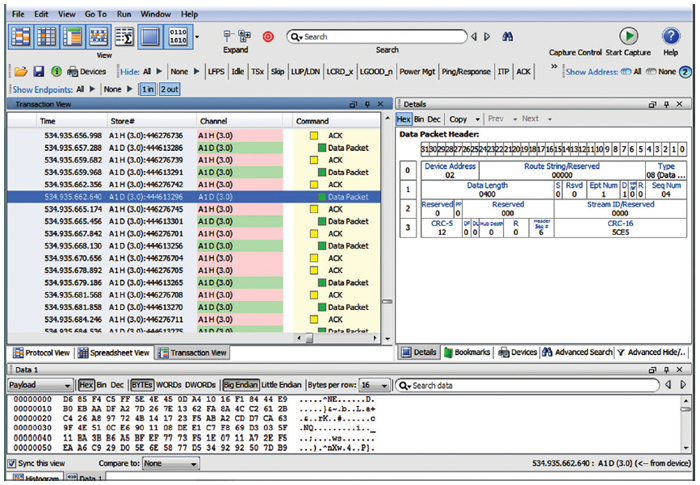

The USB transaction view of the Keysight USB SuperSpeed analyzer system illustrates the operation of the system under test with three easily understood views. The highlighted row in the transaction view window is presented in the details screen.
