InfiniiVision 1000 X-시리즈 오실로스코프

  • 50 MHz ~ 70 MHz, 100 MHz, 200 MHz
  • 50,000wfms/sec의 업데이트 속도로 더 많은 신호 세부사항 확인
  • 마스크, 수학, FFT, 아날로그 버스, 프로토콜 트리거링/디코드를 포함한 전문적 측정 수행
  • 오실로스코프에 내장 도움말 및 교육용 신호가 있어 사용 방법을 빠르게 알 수 있음

| 제품 사양

제품사진

제품 EDUX1002A
50 MHz, 2 Ch
DSOX1102G
70/100 MHz, 2 Ch with Function Generator
DSOX1204A
70/100/200 MHz, 4 Ch
DSOX1204G
70/100/200 MHz, 4 Ch with Function Generator
Analog Channels 2 2 4 4
External trigger (can be used as 3rd digital channel) 1 1
Bandwidth 50 MHz 70 MHz (base) 70 MHz (base)
  100 MHz (Opt. DSOX1B7T102) 100 MHz(Opt. D1200BW1A)
200 MHz(Opt. D1200BW2A)
Max. Sample Rate 1 GSa/s 2 GSa/s 2 GSa/s 2 GSa/s
Max. Memory Depth 100 kpts 1 Mpts 2 Mpts 2 Mpts
Segmented Memory N/A Standard Standard Standard
Mask/limit testing N/A Standard Standard Standard
WaveGen N/A 20-MHz function generator
(includes Bode plot test)
N/A 20-MHz function generator
(includes Bode plot test)
Serial protocol analysis Optional:
– I²C, UART/RS-232 (EDUX1EMBD)
Optional:
– I²C, UART/RS-232 (EDUX1EMBD)
– CAN, LIN (DSOX1AUTO)

Standard:
– I²C, SPI, UART/RS-232, CAN, LIN

Waveform math Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter
Display 7-inch TFT LCD WVGA
Waveform update rate 50,000 waveforms per second 200,000 waveforms per second
Connectivity USB 2.0 (host and device) USB 2.0 (host and device)
LAN


제품사진

제품

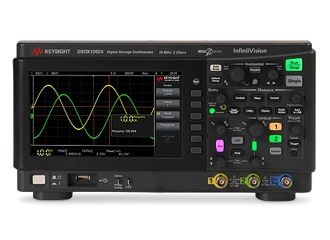

DSOX1202A
70/100/200 MHz, 2 Ch

DSOX1202G
70/100 MHz, 2 Ch with Function Generator

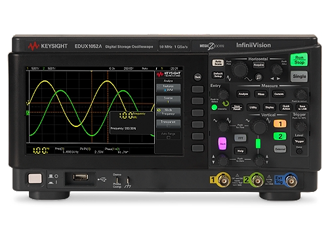

EDUX1052A
50 MHz, 2 Ch

EDUX1052G
50 MHz, 2 Ch with Function Generator

Analog Channels 2 2 + 1 (ext. trigger viewable as digital channel)
External trigger

Front panel input
(Displayable as a 3rd digital channel)

1 (or 3rd digital channel)

Bandwidth 70 MHz 50 MHz
100 MHz(Opt. D1202BW1A)
200 MHz(Opt. D1202BW2A)

Max. Sample Rate 2 GSa/s 2 GSa/s 1 GSa/s 1 GSa/s
Max. Memory Depth 2 Mpts 2 Mpts 200 kpts 200 kpts
Segmented Memory Standard Standard N/A N/A
Mask/limit testing Standard Standard N/A N/A
WaveGen N/A 20-MHz function generator
(includes Bode plot test)
N/A 20-MHz function generator
(includes Bode plot test)
Serial protocol analysis Standard:
– I²C, SPI, UART/RS-232, CAN, LIN
Standard:
– I²C, UART/RS-232
Waveform math Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter
Display 7-inch TFT LCD WVGA
Waveform update rate 200,000 waveforms per second

100,000 waveforms per second

Connectivity USB 2.0 (host and device)

| 옵션 & 액세서리

Bandwidth Upgrades
Description Model number

Upgrade bandwidth from 70 to 100 MHz upgrade
(Compatible with DSOX1102A or DSOX1102G)

DSOX1B7T102

Upgrade bandwidth from 70 to 100 MHz upgrade
(Compatible with DSOX1204A or DSOX1204G)

D1200BW1A

Upgrade bandwidth from 70 to 200 MHz upgrade
(Compatible with DSOX1204A or DSOX1204G)

D1200BW2A

Upgrade bandwidth from 100 to 200 MHz upgrade
(Compatible with DSOX1204A or DSOX1204G)

D1200BW3A

Upgrade bandwidth from 70 to 100 MHz upgrade
(Compatible with DSOX1202A or DSOX1202G)

D1202BW1A

Upgrade bandwidth from 70 to 200 MHz upgrade
(Compatible with DSOX1202A or DSOX1202G)

D1202BW2A

Upgrade bandwidth from 100 to 200 MHz upgrade
(Compatible with DSOX1202A or DSOX1202G)

D1202BW3A
Desired Decodes
Description Model number
Decodes and analysis for I2C, UART(RS-232) protocols
(Compatible with EDUX1002A and EDUX1002G)
EDUX1EMBD
Decodes and analysis for I2C, SPI, UART(RS-232) protocols
(Compatible with DSOX1102A or DSOX1102G)
DSOX1EMBD
Decodes and analysis for CAN, LIN protocols
(Compatible with DSOX1102A or DSOX1102G)
DSOX1AUTO
Probes and Accessories
Description Model number
1:1, 10:1 switchable 75 MHz
(2 probes included standard with EDUX1002A/G and EDUX1052A/G)
N2142A

1:1, 10:1 switchable 200 MHz
(2 probes included standard with DSOX1102A/G and DSOX1202A/G
4 probes included standard with DSOX1204A/G)

N2140A
Soft carrying case for 1000 X-Series oscilloscopes N2738A
Rackmount kit for 1000 X-Series oscilloscopes N2133A
BenchVue oscilloscope application BV0004B
23 MHz, 3 kA, AC current probe N7040A
30 MHz, 600A, AC current probe N7041A
30 MHz, 300A, AC current probe N7042A
10:1, 300 MHz passive probe N2842A
1:1, 10:1 switchable 350 MHz passive probe N2889A
1:1, 20 MHz passive probe 10070D
1:1, 35 MHz passive probe N2870A
10:1 400 MHz extreme temperature passive probe N7007A
100:1 500 MHz 3.7 KV high voltage passive pr 10076C
25 MHz, 10:1, 100:1 switchable high voltage up to ± 700V N2791A
70 MHz, 100:1, 1000:1 switchable high voltage up to ± 700 N2891A
100 kHz, 100A, AC/DC current probe 1146B
2 MHz, 500A, AC/DC current probe (with N2779A power supply) N2780B
10 MHz, 150A, AC/DC current probe (with N2779A power supply) N2781B
50 MHz, 30A, AC/DC current probe (with N2779A power supply) N2782B
100 MHz, 30A, AC/DC current probe (with N2779A power supply) N2783B

| 자료실

제    목 파일 다운로드
키사이트 InfiniiVision 1000-X 시리즈 vs 텍트로닉스 TBS1000C PDF
[제품 사양서] DSOXBODE Bode 플롯 교육 키트 PDF
DSOXBODE Bode 플롯 교육 키트 사용자 가이드 PDF
타사 제품과 차별화 되어 있는 새로운 키사이트의 BenchVue S/W 시스템 PDF
오실로스코프를 이용한 RF 분석 PDF
[제품 사양서] 키사이트 InfiniiVision 1000-X 시리즈 팩트쉬트 PDF
[제품 사양서] 키사이트 InfiniiVision 1000-X 시리즈 제품 사양서 PDF
BenchVue 소프트웨어 AVI
IO Libraries Suite Downloads EXE
[매뉴얼] InfiniiVision 1000 X-시리즈 오실로스코프 PDF
[제품사양서] InfiniiVision 1000 X-시리즈 오실로스코프 PDF
[제품사양서] Keysight Oscilloscope Selection Guide PDF
