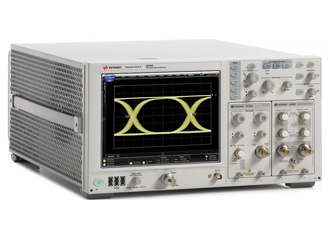

Hardware Option | |
Standard trigger |
86100D-STR |
Enhanced trigger |
86100D-ETR |
Internal Precision Timebase1 |
86100D-PTB |
GPIB card interface installed |
86100D-GPI |
No GPIB card interface |
86100D-GPN |
Removable hard drive |
86100D-090 |
Internal hard drive |
86100D-092 |
Software Option | |
MATLAB - Basic Oscilloscope package |
86100D-061 |
MATLAB - Standard Oscilloscope package |
86100D-062 |
Enhanced Jitter analysis software |
86100D-200 |
Advanced waveform analysis software |
86100D-201 |
Enhanced impedance and S-parameter software |
86100D-202 |
Amplitude analysis/RIN/Q-factor |
86100D-300 |
PLL and Jitter Spectrum software |
86100DU-400 |
Advanced EYE analysis software |
86100DU-401 |
InfiniiSim-DCA software |
86100D-SIM |
Productivity Package software |
86100D-500 |
Misc Option | |
Module slot filler panel |
86100D-AFP |
Rack mount flange kit |
86100D-AX4 |
Rack mount flange kit with handles |
86100D-AXE |
Commercial cal certificate with test data |
86100D-UK6 |
Optical/electrical Module | |
Description | Model number |
9 GHz optical channel; single-mode and multimode, amplified (750 to 1650 nm) 20 GHz electrical channel |
86105C |
155 Mb/s through 8.5 Gb/s (choose 4 filter rates from Options 86105C-110 through 86105C-195) |
86105C-100 |
155 Mb/s |
86105C-110 |
622 Mb/s (also covers 614 Mb/s) |
86105C-120 |
1.063 Gb/s |
86105C-130 |
1.244/1.250 Gb/s (also covers 1.229 Mb/s) |
86105C-140 |
2.125 Gb/s |
86105C-150 |
2.488/2.500 Gb/s (also covers 2.458 Gb/s) |
86105C-160 |
2.666 Gb/s |
86105C-170 |
3.125 Gb/s (also covers 3.072 Gb/s) |
86105C-180 |
4.250 Gb/s |
86105C-190 |
5.0 Gb/s |
86105C-193 |
6.250 Gb/s (also covers 6.144 Gb/s) |
86105C-195 |
8.5, 9.953, 10.3125, 10.519, 10.664, 10.709, 11.096,11.317 Gb/s |
86105C-200 |
Combination of rates available in 86105C-100 and 86105C-200 |
86105C-300 |
20 GHz optical channel; single-mode and multimode, (750-1650 nm); filters for 8.5, 9.953, 10.3125, 10.519, 10.664, 10.709, 11.096, 11.317, 14.025 Gb/s; 35 GHz electrical channel |
86105D |
Identical capability as 86105D, 14.025 Gb/s filter not included |
86105D-100 |
Identical capability as 86105D, only filter provided is 14.025 Gb/s |
86105D-200 |
System impulse response correction calibration |
86105D-IRC |
34 GHz optical channel, filters for 15, 25.78 , 27.95, 28.05 Gb/s (contact Keysight for additional 14.025 Gb/s filter)4. 50 GHz electrical channel |
86105D-281 |
20 GHz multi-optical port plug-in module;single-mode and multimode (750-1650 nm); filters for 8.5, 9.953, 10.3125, 10.519, 10.664, 10.709, 11.096, 11.317, 14.025 Gb/s |
86115D |
Two optical channels with filters for all rates listed (8.5 to 14.025 Gb/s) |
86115D-002 |
Identical capability as 86115D-002, 14.025 Gb/s filters not included |
86115D-102 |
Identical capability as 86115D-002, only filters provided are 14.025 Gb/s |
86115D-142 |
Two optical channels with filters for 15, 25.78, 27.95, 28.05 Gb/s (contact Keysight for 14.025 Gb/s filter) |
86115D-282 |
Four optical ports with filters for all rates listed (8.5 to 14.025 Gb/s) mulitplexed to two opticalchannels through 2 integral 1X2 optical switches |
86115D-004 |
Identical capability as 86115D-004, 14.025 Gb/s filters not included |
86115D-104 |
Identical capability as 86115D-004, only filters provided are 14.025 Gb/s |
86115D-144 |
System impulse response correction calibration |
86115D-IRC |
40 to 65 GHz optical / 80 GHz electrical samplingmodule, 1300 to 1620 nm |
86116C |
System impulse response correction calibration |
86116C-IRC3 |
40 to 65 GHz optical / 80 GHz electrical samplingmodule, 1300 to 1620 nm |
86116C |
Dual/Quad electrical channel Module |
|
Description | Model number |
Dual 20 GHz electrical channels |
86112A |
Dual 30 GHz electrical channels |
86112A-HBW |
Dual 50 GHz electrical channels |
86117A |
Dual 70 GHz electrical remote sampling channels |
86118A |
Differential De-Skew | 86118A-H01 |
2/4 Port 60 GHz electrical remote head | N1045A |
2 channel remote head, 1.85 mm, female | N1045A-02F |
2 channel remote head, 1.85 mm, male | N1045A-02M |
4 channel remote head, 1.85 mm, female | N1045A-04F |
TDR/TDT channel Module |
|
Description | Model number |
Differential TDR module with dual 18 GHz TDR/electrical channels |
54754A |
35 GHz, 2 channel remote head, 2.92 mm, female |
N1055A-32F |
35 GHz, 2 channel remote head, 2.92 mm, male |
N1055A-32M |
35 GHz, 4 channel remote head, 2.92 mm, female |
N1055A-34F |
35 GHz, 4 channel remote head, 2.92 mm, male |
N1055A-34M |
50 GHz, 2 channel remote head, 1.85 mm, female |
N1055A-52F |
50 GHz, 2 channel remote head, 1.85 mm, male |
N1055A-52M |
50 GHz, 4 channel remote head, 1.85 mm, female |
N1055A-54F |
50 GHz, 4 channel remote head, 1.85 mm, male |
N1055A-54M |
Precision timebase Module |
|
Description | Model number |
Precision timebase reference module |
86107A |
2.5 and 10 GHz clock input capability |
86107A-010 |
10 and 20 GHz clock input capability |
86107A-020 |
10, 20 and 40 GHz clock input capability |
86107A-040 |
Clock recovery Module |
|
Description | Model number |
50 Mb/s to 7.1 Gb/s Clock recovery module. This module is not compatible with the 86100A and 86100B DCA mainframes. If you want to upgrade older DCAs, contact Keysight Technologies and ask for current trade-in deals. |
83496B |
Single-ended and differential electrical with integrated signal | 83496B-100 |
taps | |
Single Mode (1260-1360 nm and 1490-1600 nm) and multimode | 83496B-101 |
(830-860 nm and 1260-1360 nm) optical. Integrated signal taps. | |
Single-ended or differential electrical inputs (no signal taps) | |
Increase operating range to 50 Mb/s to 14.2 Gb/s | 83496B-200 |
Data rate 0.05 Gb/s to 14.2 Gb/s upgrade | 83496BU-200 |
Shift operating range to 7.1 to 14.2 Gb/s | 83496B-201 |
Shift operating range to 7.1 to 14.2 Gb/s upgrade | 83496BU-201 |
Add tunable loop bandwidth “golden PLL” capability | 83496B-300 |
Adjustable loop bandwidth upgrade | 83496BU-300 |
External clock recovery solutions |
|
Description | Model number |
50 Mb/s to 32 Gb/s electrical clock recovery instrument with 1:2 demultiplexer |
N4877A |
50 Mb/s to 16 Gb/s operation | N4877A-216 |
50 Mb/s to 32 Gb/s operation | N4877A-232 |
Optical pickoff and electrical converter | N1075A |
Multimode and single-mode to > 16 Gb/s | N1075A-M14 |
Single-mode to > 32 Gb/s | N1075A-S32 |
Bundle N4877A and N1075A for an optical clock recovery solution |
N1070A |
Precision waveform analyzer Module |
|
Description | Model number |
Dual 32 GHz electrical channels, integrated clock recovery (50 Mb/s to 14.2 Gb/s) with integrated precision timebase |
86108A-100 |
Two 3.5 mm phase trimmers for skew adjustment |
86108A-001 |
Two precision 3.5 mm 18 inch cables |
86108A-002 |
Auxiliary Clock Recovery Inpu |
86108A-400 |
