Win4156 PC Control Software for the HP4156
Win4156 is PC-based control software for the HP4156 Semiconductor Parameter Analyzer.
Win4156 provides GPIB-bus control allowing the creation, execution, and analysis of the data.
The addition of Win4156 provides enhanced automation of the HP 4155A, 4155B, 4155C, 4156A, 4156B or 4156C.

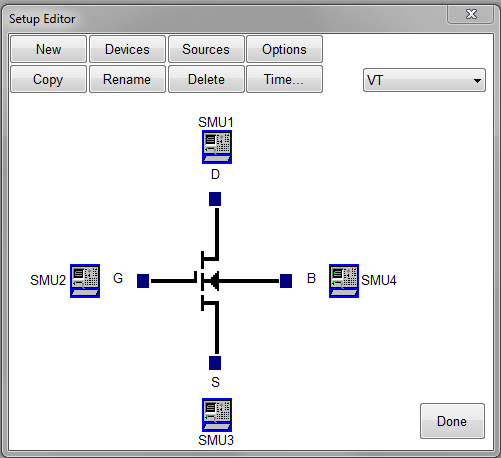

| Win4156 Point, Click, and Measure Capabilities
• Provides programming-free test setup generation.
• Supports measurement sequences.

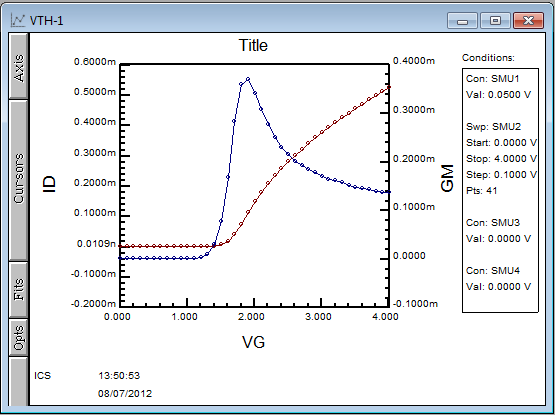

| Win4156 Plotting and Data Analysis
• Provides powerful plotting capabilities.
• Uses Windows clipboard flexibility to incorporate plots into documents and presentations.

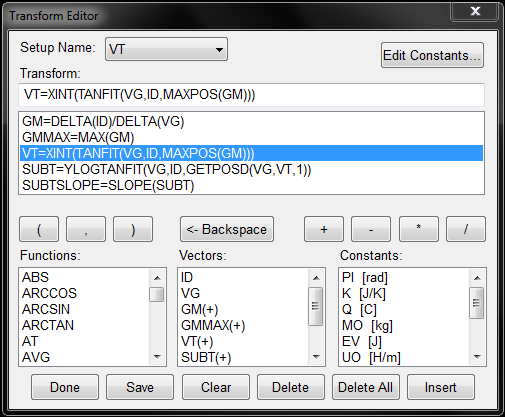

| Win4156 Equation Editor
• Extracts parameters according to user definition.
| Win4156 Data management
• Uses project files as a central location to store test setups and data.
• Provides a hierarchical database engine that organizes and manges your data.
• Includes ASCII export of data.
