DiiVA Test Adapter

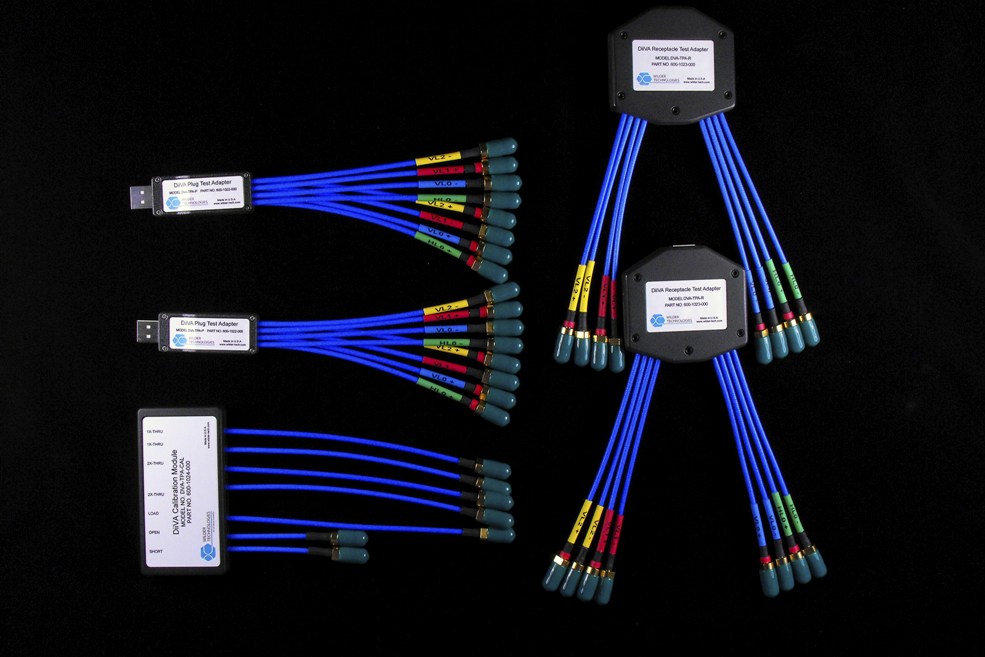

The DVA-TPA-PPRRC DiiVA test adapter or test fixture kit facilitates Source and Sink compliance testing for DiIVA devices.
| Key Electrical

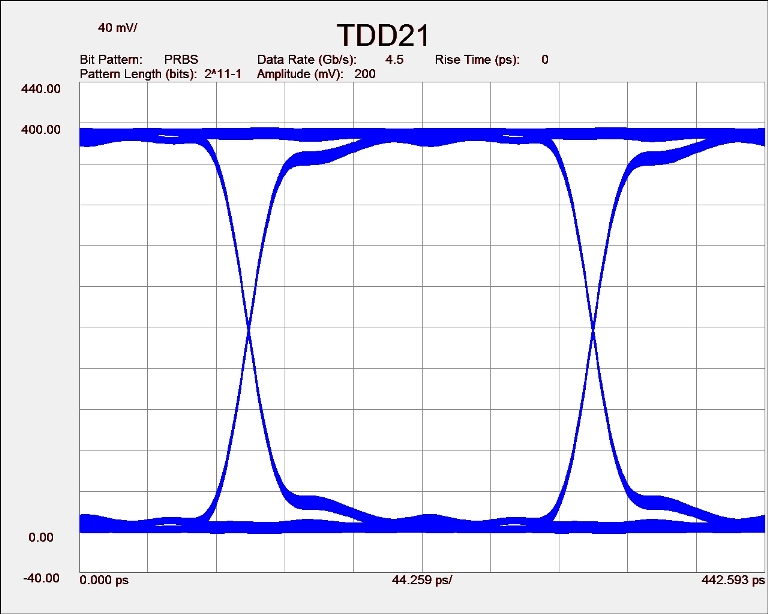

• 4.5 Gb/s data rates supported

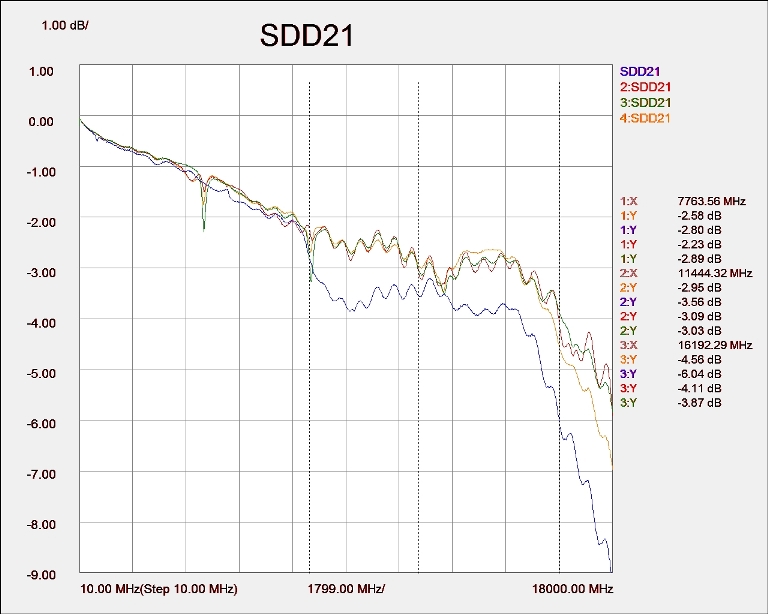

• Insertion loss < -3 dB @ 11 GHz mated plug and receptacle fixtures

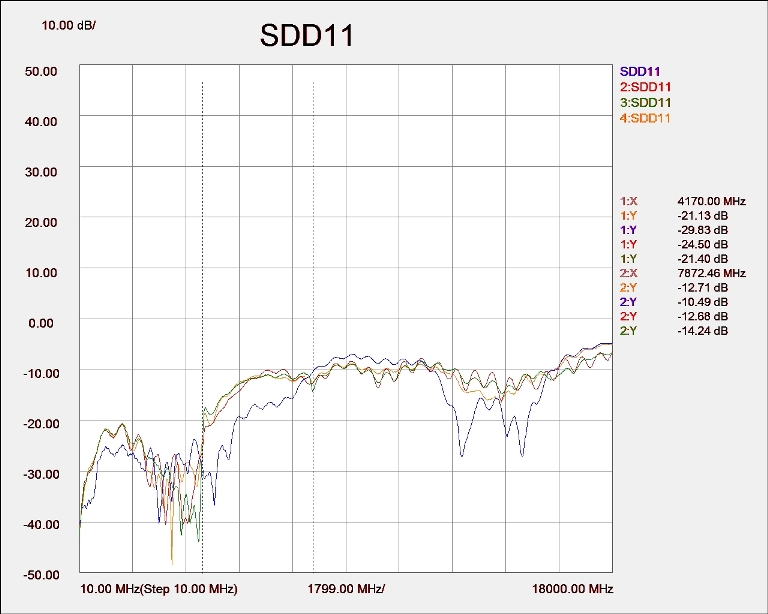

• Return loss < -20dB @ 4.2 GHz mated plug and receptacle fixtures
• Differential Impedance 100 +/- 5 ohms
• Single Ended Impedance 50 +/- 2.5 ohms
| Key Mechanical
• High performance .086" Flexible SMA coaxial cables
• All critical components are enclosed to facilitate robustness
• Coax cables are enclosed in a rotation compliant strain relief
• Coax cables are axially retained in the fixture enclosure
| Calibration Cables
• Use to compensate for test fixture losses and phase delay
• 1X & 2X SMA to SMA cables facilitate using SMA Coax Standards
• 2X THRU insertion loss < -3.0 dB @ 18.7 GHz
• 2X THRU return loss < -20dB @ 13.2 GHz
