WinB2900 PC Control Software for the Keysight B2900A
Metrics B2900A
WinB2900 is PC-based control software for the Agilent B2900A Source Measure Unit.
WinB2900 provides GPIB-bus or LXI control allowing the creation, execution, and analysis of the data.
The addition of WinB2900 provides enhanced automation of the AT B2901A, B2902A, B2911A or B2912A.
| WinB2900 Point, Click, and Measure Capabilities
• Controls your Keysight B2900A series meter with one easy-to-use graphical interface.

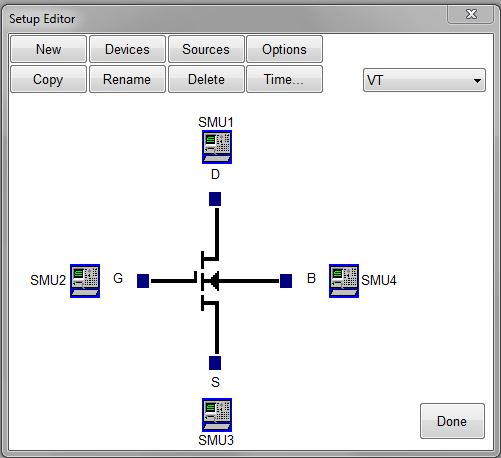

• Provides programming-free test setup generation.
• Supports measurement sequences.

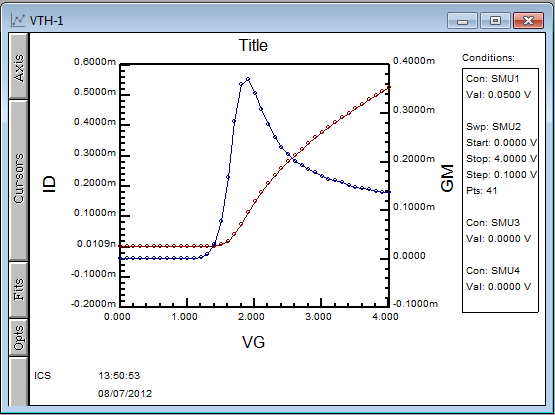

| WinB2900 Plotting and Data Analysis
• Extracts parameters according to user definition.
• Provides powerful plotting capabilities.
• Uses Windows clipboard flexibility to incorporate plots into documents and presentations.

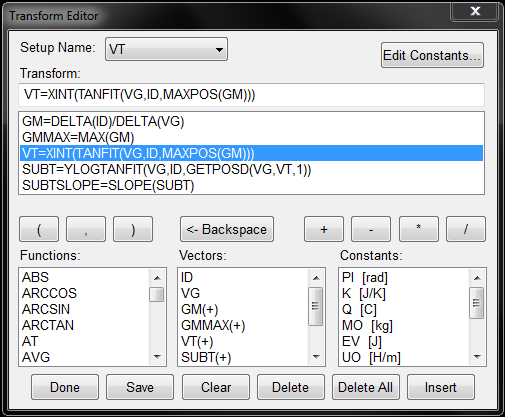

| Win4145 Equation Editor
• Extracts parameters according to user definition.
| WinB2900 Data management
• Uses project files as a central location to store test setups and data.
• Provides a hierarchical database engine that organizes and manges your data.
• Includes ASCII export of data.
