The QSFP+-TPA-PR test fixture kit or test fixture kit will facilitate the QSFP+ host and device complaince testing using our QSFP+ Host Compliance Board (HCB) test fixture and our Module Complaince Board (MCB) test fixture.

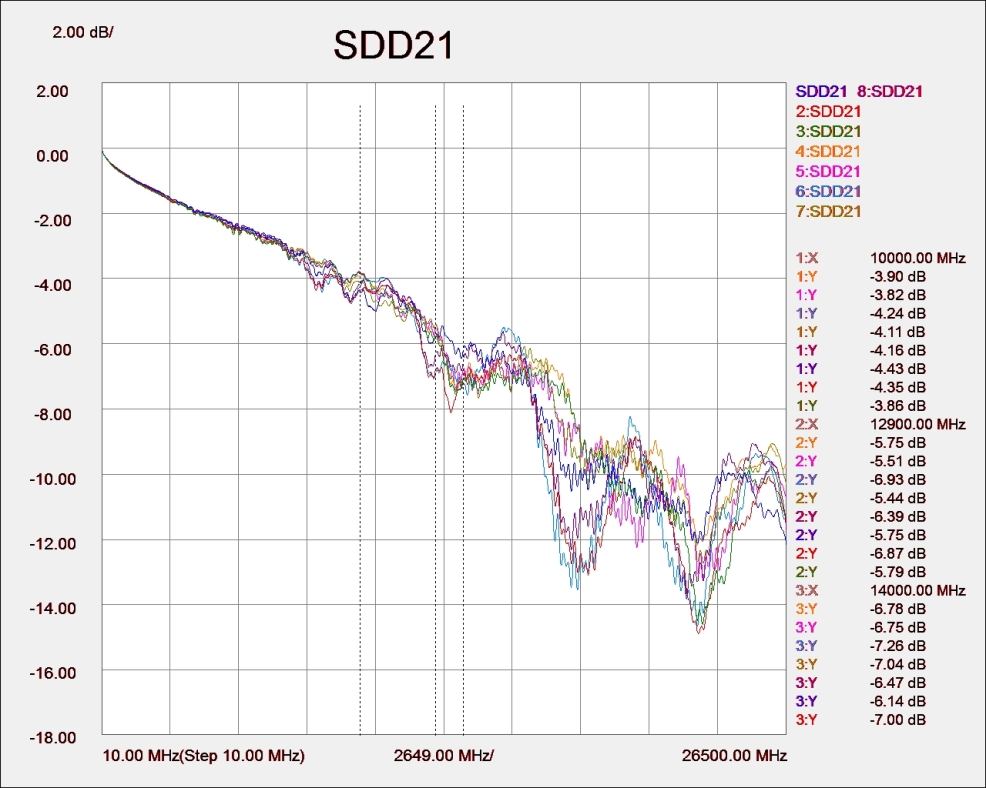

Differential Insertion Loss (SDD21) with mated plug and receptacle test fixture.

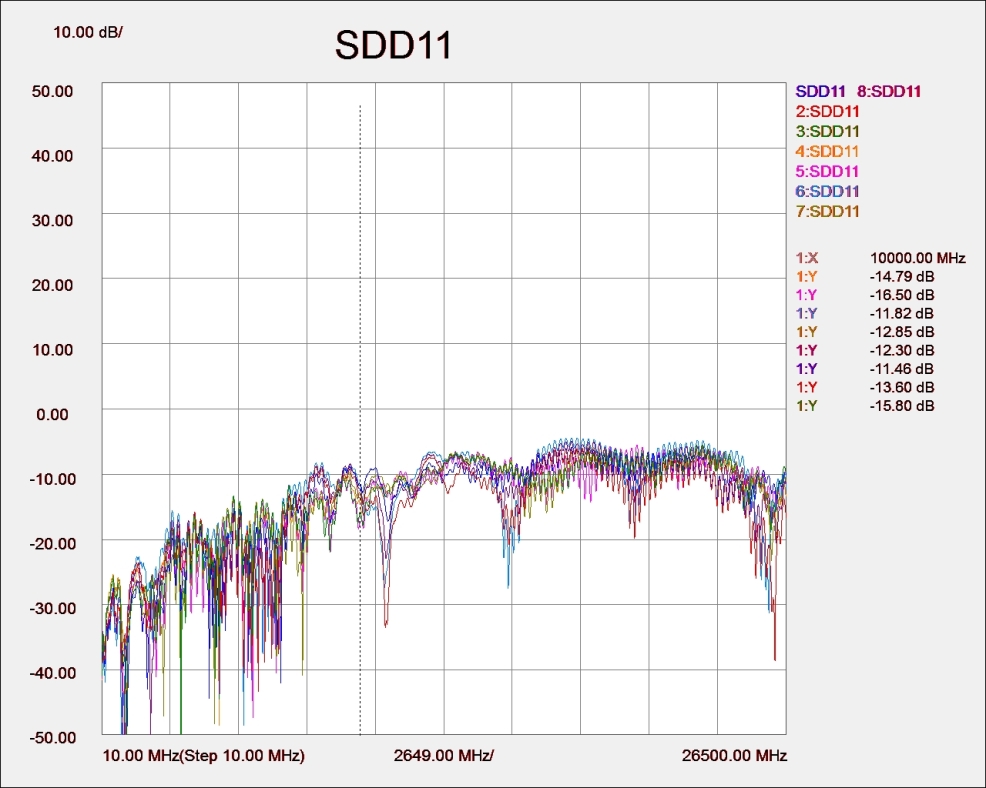

Differential Return Loss (SDD11) with mated plug and receptacle test fixtures.

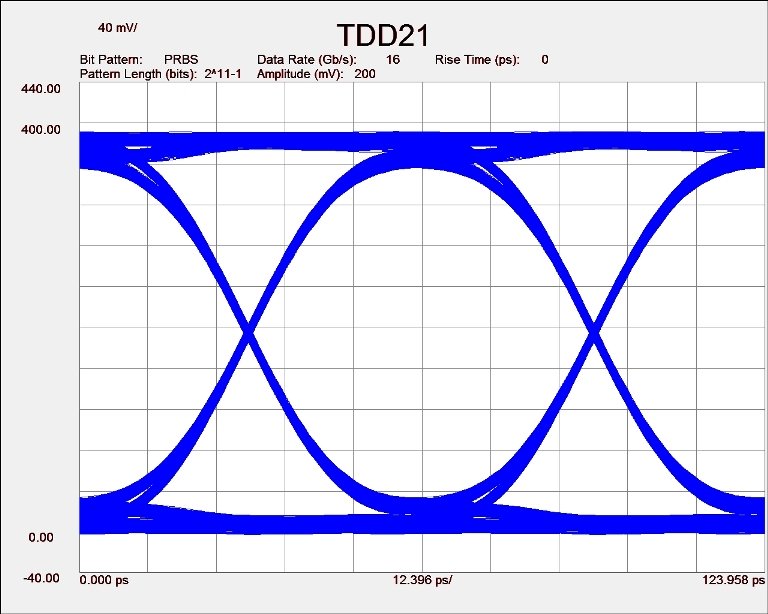

10.0 Gbs Eye (PRBS 2^11-1) (SDD21) with mated plug and receptacle test fixtures.

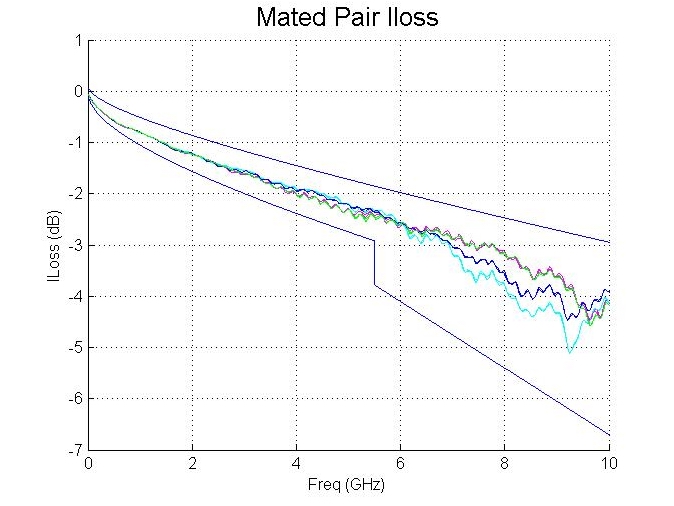

Mated HCB and MCB Tests Fixture IL Curve inside of the CR4 Specified IL Envelope for Mated Test Fixtures
