SFP+ Test Adapters

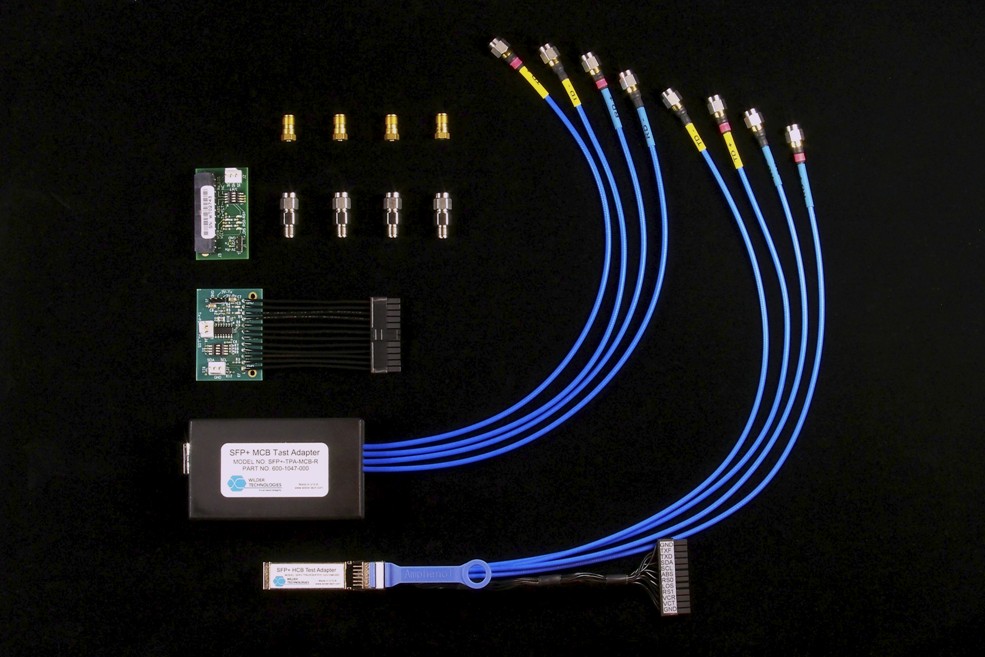

◀ SFP+ HCB and MCB Test Fixture
(kit # 640-0545-000)
The SFP+-TPA-PRK test fixture kit or test fixture kit will facilitate the SFP+ host and device compliance testing using our SFP+ Host Compliance Board (HCB) test fixture and our Module Compliance Board (MCB) test fixture.
| Key Electrical
• 10.0 Gb/s data rate supported
• Insertion loss < -3 dB @ 9.5 GHz mated HCB and MCB fixtures
• Return loss < -10dB @ ~16.5 GHz mated HCB and MCB fixtures
• Differential Impedance 100 +/- 5 ohms - excluding recep connector
• Single Ended Impedance 50 +/- 2.5 ohms- excluding recep connector
| Key Mechanical
• HCB Fixture emulates the form factor envelope of a QSFP+ cable assembly
• Long High Performance flexible coaxial cables with male SMAs facilitate the direct connection to T&M equipment

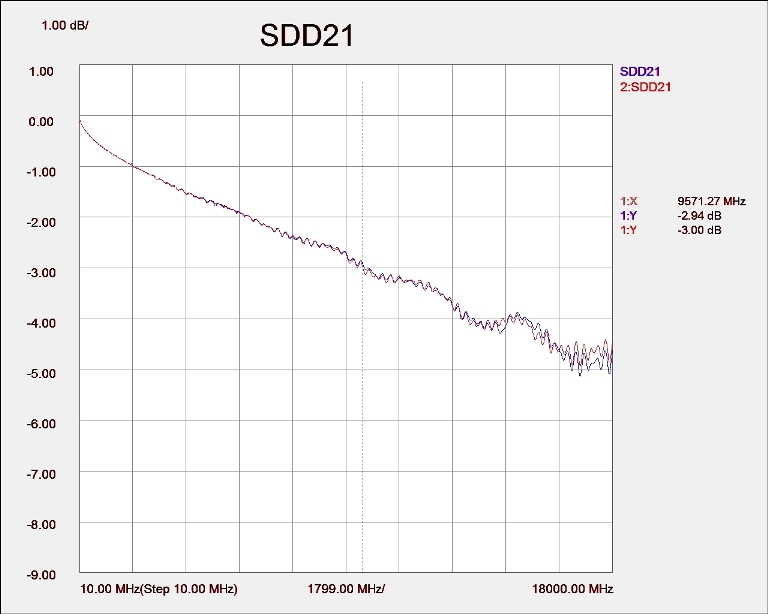

Differential Insertion Loss (SDD21) with mated plug and receptacle test fixture. Without fixture De-Embedding.

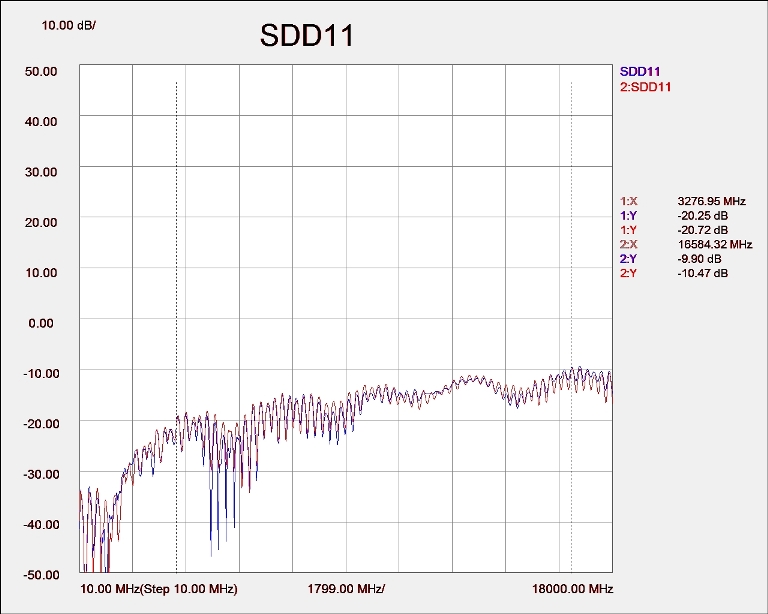

Differential Return Loss (SDD11) with mated plug and receptacle test fixtures. Without fixture De-Embedding.

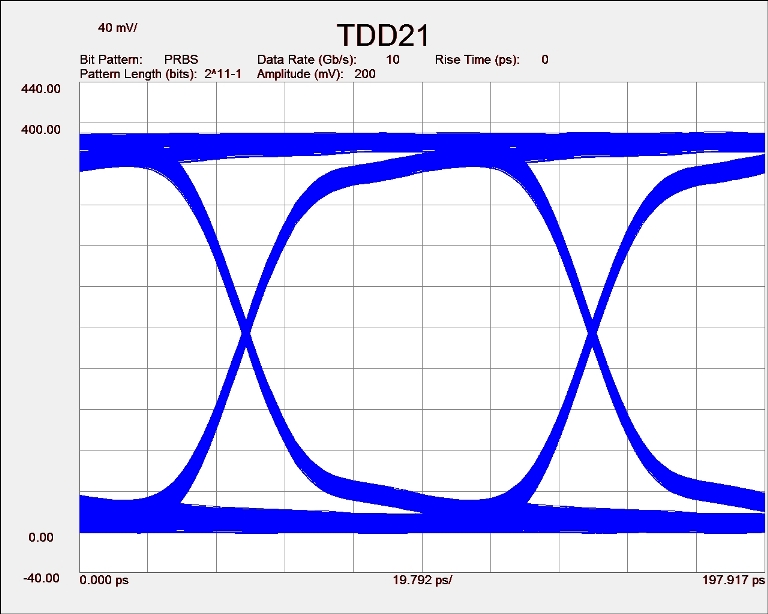

10.0 Gbs Eye (PRBS 2^11-1) (SDD21) with mated plug and receptacle test fixtures. Without fixture De-Embedding.
