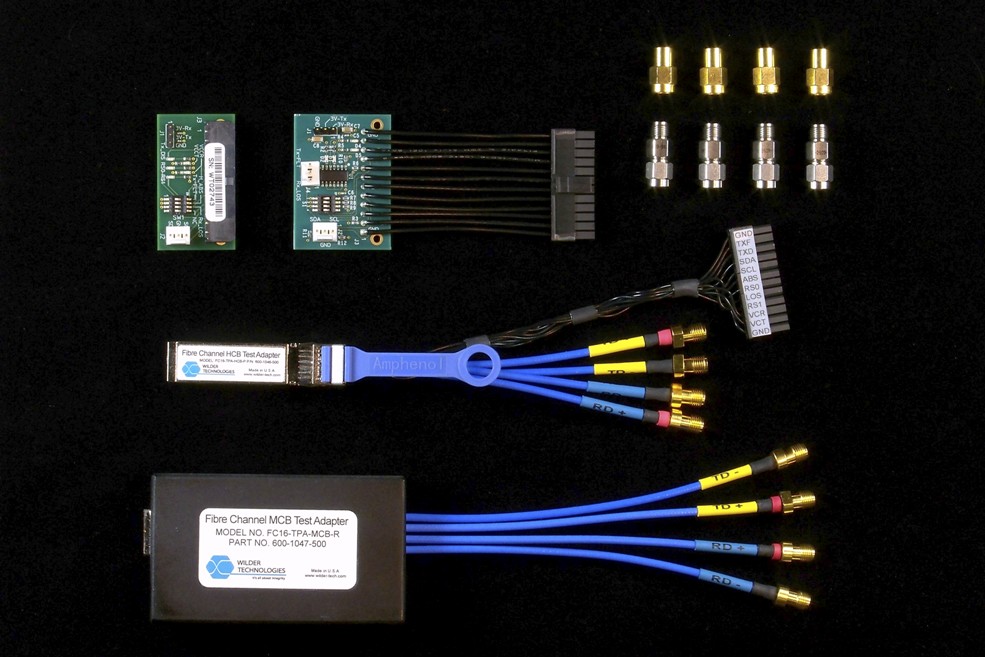

Fiber Channel Test AdaptersThe FC16-TPA-PRK test fixture kit or test adapter kit will facilitate the Fibre Channel host and device compliance testing up to 16 Gbps using our Fibre Channel Host Compliance Board (HCB) test fixture and our Module Compliance Board (MCB) test fixture.

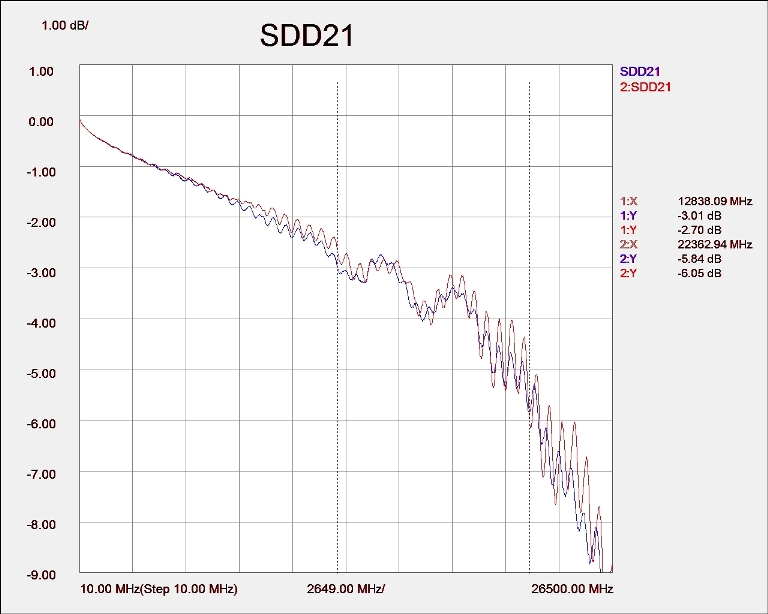

Differential Insertion Loss (SDD21) with mated HCB and MCB test fixture. Measurement does not include test fixture De-Embedding.

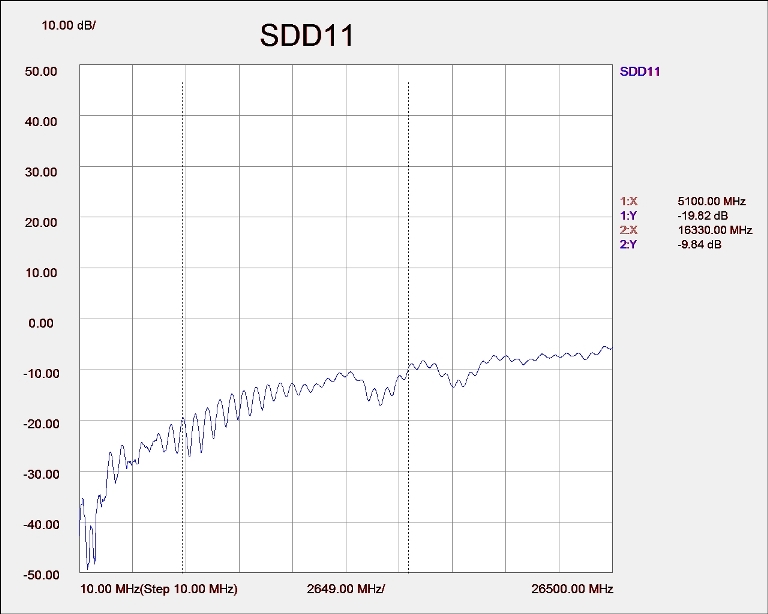

Differential Return Loss (SDD11) with mated HCB and MCB test fixtures. Measurement does not include test fixture De-Embedding

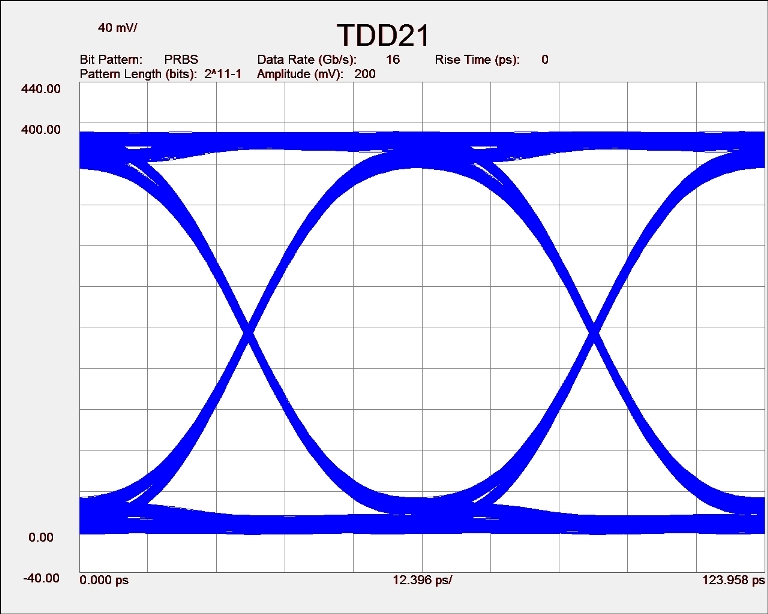

16.0 Gbs Eye (PRBS 2^11-1) (SDD21) with mated plug and receptacle test fixtures. Measurement does not include test fixture De-Embedding
